Electric motor

And yet it moves!

Difficulty:
Danger:
Duration:
30 minutes

Safety

*Carefully review the general safety advice on the back of the box cover before starting the experiment. * Read the “Magnets and electricity” section of the safety guidelines carefully before proceeding. Do not let children under 8 years old handle small magnets. * Read the “Working with Batteries” section of the safety guidelines carefully before proceeding. * Disassemble the setup after the experiment.

Step-by-step instructions

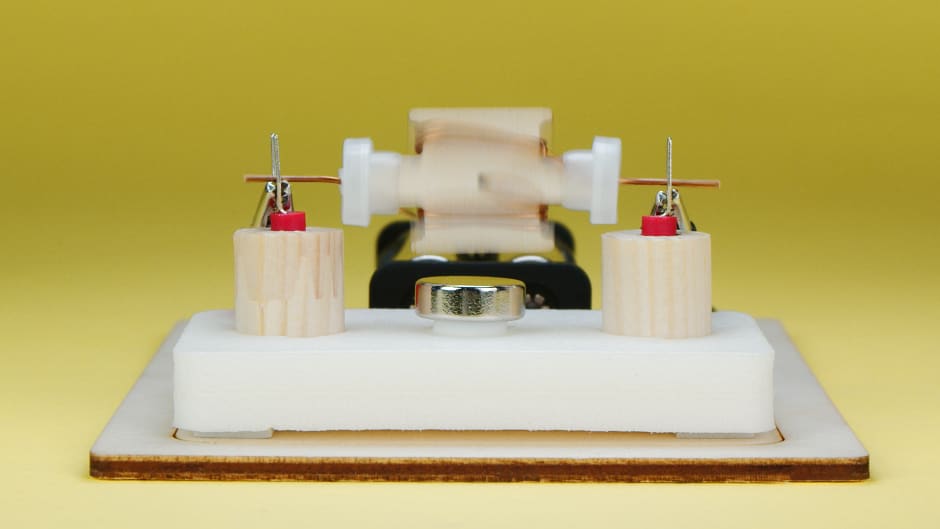

Imagine you are an engineer! Let’s build an installation for an electric motor.

3_physics_electric-motor_electric-motor_01

Now it's time to set up the stands your electric motor will be secured on.

3_physics_electric-motor_electric-motor_02

Carefully coil the wire for your future electric motor.

3_physics_electric-motor_electric-motor_03

For current to flow through the electric motor, you have to remove the wire’s external non-conductive coating. However, in order for the motor to rotate, you need to clean only half of the wire’s surface on both ends.

3_physics_electric-motor_electric-motor_04

Let electric current run through the motor—install it on the wire clamps connected to the batteries!

3_physics_electric-motor_electric-motor_05

Give the motor a single push to make the cleaned parts of the wire touch the clamps.

3_physics_electric-motor_electric-motor_06

Refer to the video for detailed step-by-step instructions!

Disposal

  • Dispose of used batteries in accordance with local regulations.
  • Dispose of solid waste together with household garbage.

Scientific description

What exactly makes the motor spin? Wire with electric current  flowing through it creates a magnetic field, and therefore interacts with magnets. When such a wire is placed near a permanent magnet  and is thus inside its magnetic field, it is subjected to an external force called Lorentz force .

Here, it is important to only half-clean the wire. This cuts off the flow of electric current in the circuit when the motor is in certain positions. The direction of the Lorentz force  acting on the current-carrying wire  depends on the direction of the current .

In your configuration, when a clean part of the wire is touching the holder, electric current flows through the wire, and the Lorentz force pushes it to rotate. On the other half of a full turn, where the wire hasn’t been cleaned, the current is cut off, and the force disappears. At this phase, the motor keeps spinning without external influence. Then the cleaned part of the wire touches the holder again, and the Lorentz force reappears.

If the current were continuous, on the other half of a full turn the force would appear in the opposite direction, and it would not rotate.

The system works just like a merry-go-round: if you push it periodically, it keeps moving on its own between pushes, but without your force it will eventually stop.

That’s interesting!

A magnet affects the motion of electrons, but not just electrons! Other particles—such as protons and ions—also react to magnetic fields. They are called electrically charged particles. How do they react, and why does it matter?

Billions of charged particles (protons, electrons, ions) are flying from outer space towards Earth at high speeds. Take, for instance, solar wind—a stream of charged particles (primarily electrons and protons) originating from the Sun. This wind is dangerous for human beings. Fortunately, it cannot reach us at full strength because the Earth’s magnetic field changes the direction of movement of these charged particles. Some scientists presume that without a magnetic field, the solar wind would have easily “blown away” our planet’s atmosphere.
